SCADA/IoT
Reimagining Industrial Automation for Research
Overview
This SCADA/IoT system represents a fundamental rethinking of industrial automation for research environments. Traditional SCADA systems are expensive, proprietary, and inflexible-ill-suited for innovative research where rapid iteration and deep insights are essential.
My approach replaced expensive proprietary solutions with an open-source stack and commodity hardware, yielding transformative results:
Features
- 90% reduction in PLC hardware costs through software-defined solutions
- 70-80% savings on overall component costs while improving capabilities
- Real-time monitoring of ~100 sensors at ~1 second resolution
- Zero data loss despite unreliable field connections through robust buffering
- Interactive visualization of over 1 billion data points for research insights
Impact
Most importantly, this system directly contributed to more than doubling the power output of our geothermal plant from 70kW to 180kW under identical well conditions. The architecture’s flexibility allowed us to quickly implement and test optimizations based on real-time data analytics, proving that modern software approaches can revolutionize industrial energy research.
Architecture & Implementation

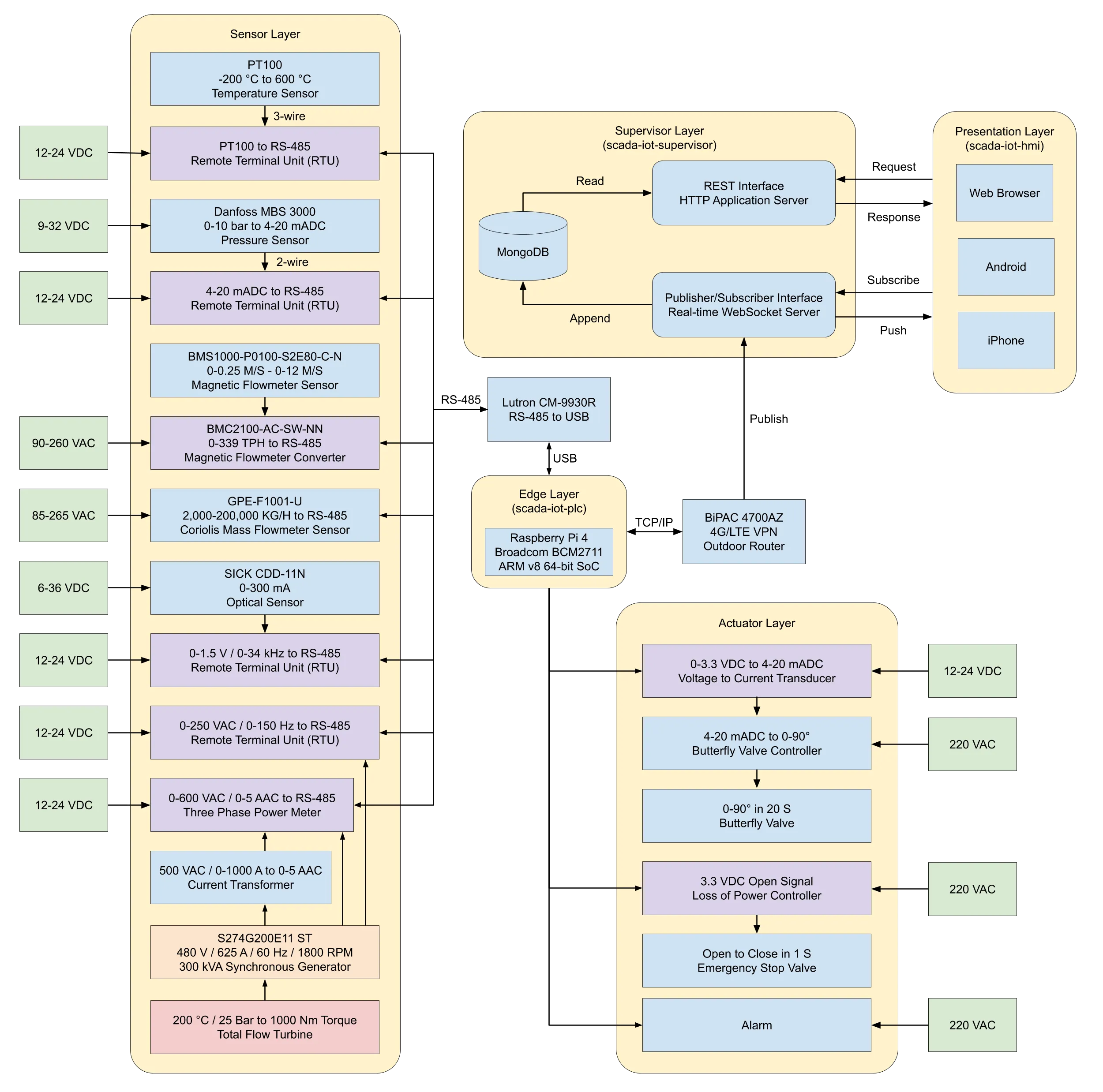

The system employs a distributed architecture with four distinct layers:
Details
- Field layer: Direct sensor connections via Modbus RTU
- Edge layer: Data processing on Raspberry Pi hardware
- Supervisor layer: Node.js/MongoDB for data collection and analysis

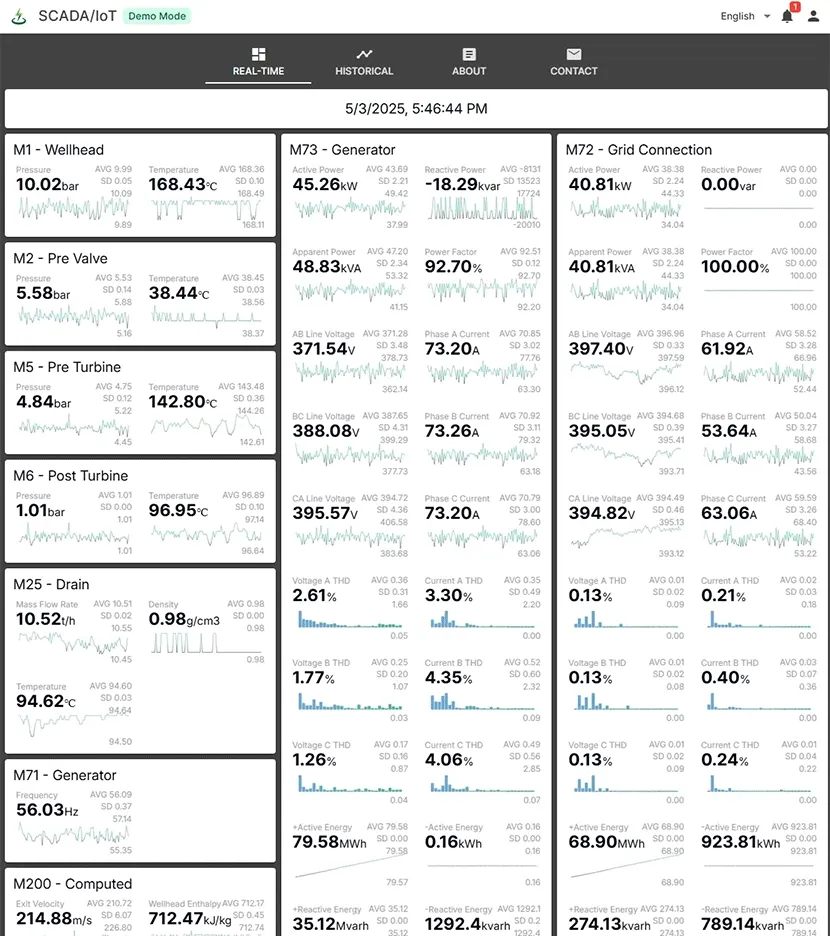

- Presentation layer: Web interface with real-time updates via WebSockets
This design emphasizes cost-effectiveness, scalability, and maintainability by leveraging open-source technologies and commodity hardware, replacing traditional expensive solutions while providing superior analytical capabilities.
